Description

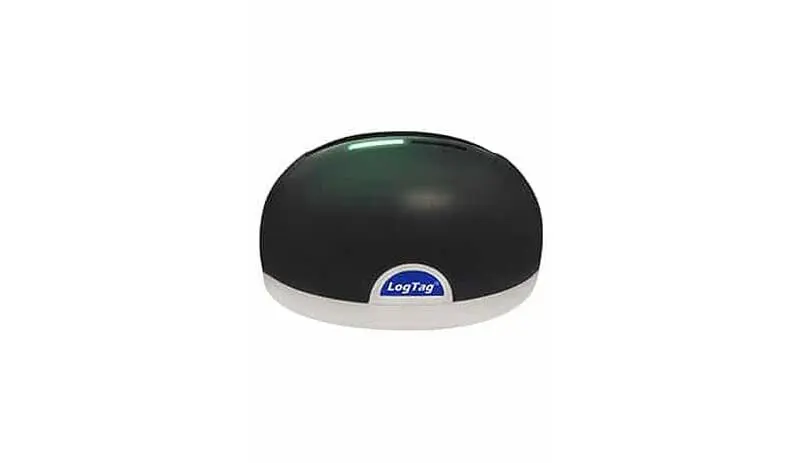

The LogTag® LTI-HID is a compact and efficient USB interface cradle for reading out and configuring all standard LogTag dataloggers. This updated version of the LTI-USB uses built-in Windows drivers and requires no separate installation, making the process plug & play.
The cradle is equipped with clear LED indicators (green and red) that visually show the status of the connection or data transfer. With its robust housing and reliable spring contacts, this readout station is perfectly suited for professional use in transport, pharmaceuticals, laboratories and logistics.
Key features
- Compatible with all standard LogTag loggers with 3 silver-coloured contact pins
- Plug & Play via USB – no additional drivers required
- Status indicators: green LED for activity, red LED for error or transfer
- Robust housing made of polycarbonate and ABS
- Compact size, ideal for desktop use
- Includes free LogTag Analyzer software (download)
Technical specifications
| Property | Specification |
|---|---|
| Dimensions | 45 × 85 × 71 mm (excl. cable) |
| Weight | 74 g (excl. cable) |
| Material | Polycarbonate + ABS |
| USB standard | USB 2.0 (micro-USB connection) |
| Power supply | Via USB from the computer |
| Temperature range (use) | -20 °C to +60 °C |
| Temperature range (storage) | -40 °C to +70 °C |
| IP rating | IP50 (for indoor use) |
| Included | 1x USB cable (1 metre) |
Applications
- Reading out temperature and humidity loggers in pharmaceutical chains
- Data transfer from transport loggers in logistics and distribution
- Configuration and reporting in laboratories and quality control
- Fast readout of single- and multi-use LogTag products
