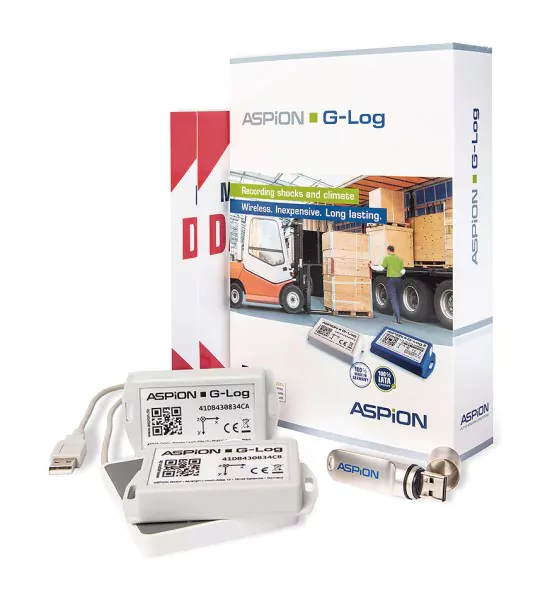

The ASPION G-Log Starter Set is the ideal solution for monitoring sensitive shipments and industrial applications.
The G-Log data loggers accurately record shocks and temperature changes during transport or storage of fragile products such as electronics, art, pharmaceuticals or food.
Thanks to the integrated accelerometer (up to ±24 g per axis) and temperature sensor (-30°C to +60°C), all relevant events are reliably recorded. The logger runs on a long-life coin cell battery, is IP50-certified and approved by Lufthansa Cargo for air transport.
With a measuring frequency of 25 to 1600 Hz and storage space for 286 measurement events, the G-Log is also perfectly suited for monitoring machines and installations.
Key features
Reliable recording of shocks and temperature
Compact and robust design with QR code and axis display
Setting tolerances via NFC and PC software
Readout via NFC with PC card reader or smartphone app (Android)
Automatic cloud upload with G-Log Premium software
GPS location upon readout via app
Long battery and storage life
User-friendly software with PDF reports and export functions
Affordable and suitable for one-time or repeated use
Technical specifications
| Feature | Specification |
| Accelerometer | ±24 g per axis |
| Temperature range | -30°C to +60°C |
| Acceleration accuracy | 2.5% (calibrated up to ±16 g) |
| Measuring frequency | 25 – 1600 Hz |
| Storage capacity | 286 events |
| Protection rating | IP50 |
| Dimensions | 88 × 45 × 16 mm |
| Battery | Long lifespan, replaceable by manufacturer |
| Approval | Lufthansa Cargo certified |
Scope of delivery
Starter set (2 loggers)
2 shock and temperature loggers ASPION G-Log (IP50)
1 USB card reader (NFC)
PC software and app
2 "Data logger inside" stickers
ASPION G-Log – reliable transport monitoring with precision and ease of use.
