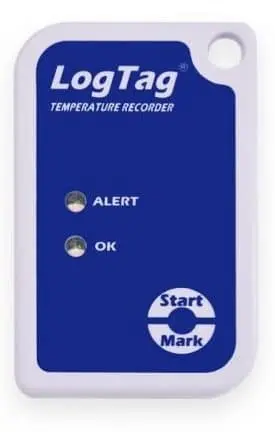

The LogTag® TRIX-8 is a versatile, reusable temperature logger with a wide measuring range of -40°C to +85°C, ideal for transport, storage and quality control of temperature-sensitive goods.
With a memory of 8031 readings, a battery life of up to 3 years and a robust polycarbonate housing, the TRIX-8 is designed for long-term, reliable measurements. The clear ‘OK’ and ‘ALERT’ indicators immediately show whether the temperature stayed within the set limits.
Via the LogTag® Interface and the free LogTag Analyzer® software, you can easily configure measurement parameters such as start delay, interval, number of readings and alarm limits. Downloading the full data takes less than 5 seconds, after which you can analyse, graph and export the data to, among others, Excel.
The TRIX-8 complies with international standards, including FCC, CE, TÜV, EN12830, WHO PQS E006/00 and RoHS, confirming its accuracy and reliability.
Compatible accessories: LogTag® Interface Cradle, wall mount and protective cover.
Technical specifications
| Property | Description |
| Product Model | TRIX-8 |
| Sensor Measurement Range | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature Range | -30°C to +55°C (-22°F to +131°F) |
| Accuracy | ±0.5°C (-20°C to +40°C) ±0.7°C (-30°C to -20°C and +40°C to +60°C) ±0.8°C (+60°C to +85°C) ±0.9°C (-40°C to -30°C) |
| Resolution | <0.1°C (-40°C to +40°C) <0.2°C (+40°C to +80°C) <0.4°C (+80°C to +85°C) |
| Sensor response time | <5 minutes (T90) in moving air (1m/s) |
| Memory capacity | 8031 readings (≈53 days @ 10min / 80 days @ 15min) |
| Logging interval | Adjustable from 30 sec to several hours |
| Start options | Push-button start or specific date/time (delay up to 18h) |
| Indication | Flashing ‘OK’ / ‘ALERT’ LED |
| Alarm settings | 1 upper and 1 lower limit (adjustable) |
| Download time | <5 seconds (full memory) |
| Protection | IP65 (comparable to NEMA 4) |
| Power supply | CR2450 3V LiMnO₂ battery (non-replaceable) |
| Battery life | 1 year storage + 2–3 years normal use |
| Internal clock | Real Time Clock ±25ppm @ 25°C (≈2.5 sec/day) |
| Dimensions | 86 mm (H) × 54.5 mm (W) × 8.6 mm (D) |
| Weight | 33 g |
| Housing | Durable polycarbonate |
