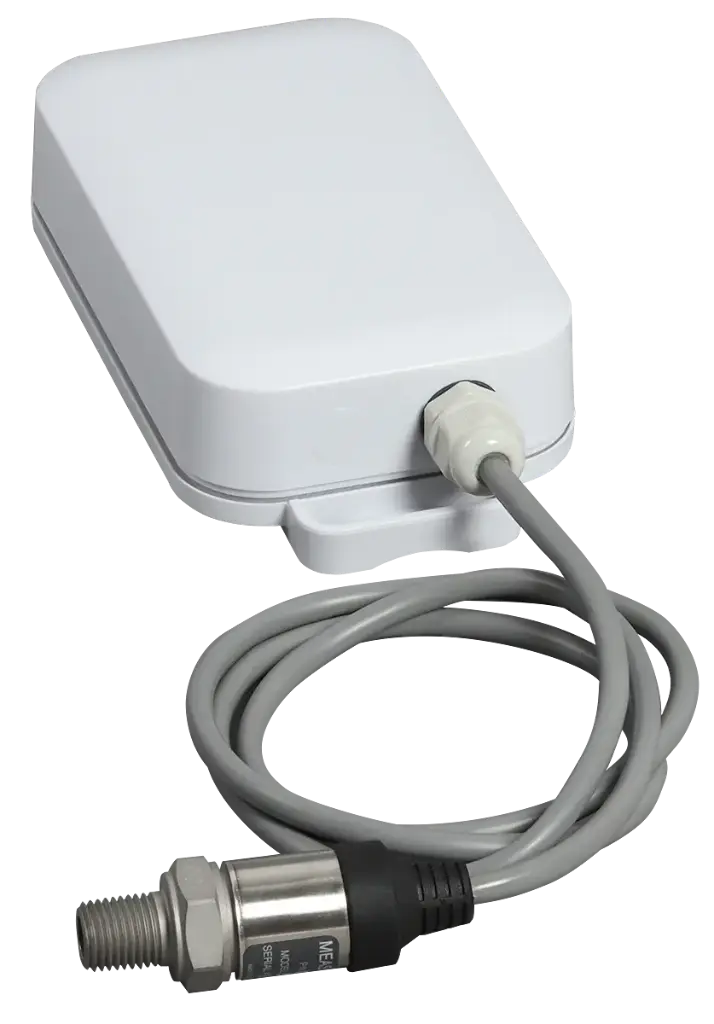

The NB-IoT wireless pipe pressure data logger is designed for accurate monitoring of liquid and gas pressure in pipes and tanks. This sensor helps prevent leaks and ensures optimal system operation by providing real-time pressure data. The logger is also widely used for tank level monitoring based on liquid pressure.
The logger automatically sends data via the NB-IoT mobile network, so no WiFi or extra gateways are needed. Configuration is quick and easy with the free mobile app via Bluetooth Low Energy (BLE).
Key features
- Measuring range: 0-7 bar (other ranges on request)
- Maintenance-free battery operation for up to 5 years
- Wireless data transmission via NB-IoT – no WiFi or extra gateway needed
- Adjustable measuring intervals: 1 minute to 10 days
- User-friendly configuration via the free mobile app (Bluetooth)
- Alarm notifications when threshold values are exceeded
- Memory for 40,000 measurements, with the oldest data automatically overwritten
- Full cloud integration with Efento Cloud or your own platform via API
Applications
- Monitoring pipe pressure in industrial installations and infrastructure
- Leak detection in water pipes and gas distribution systems
- Tank level control based on liquid pressure
- Monitoring HVAC systems, pumps and hydraulic installations
Why choose the NB-IoT-P-7?
- No WiFi or gateway needed – direct connection via the mobile network
- Long battery life of up to 5 years – maintenance-free
- Free app for easy installation and configuration
- Fully manageable remotely via Efento Cloud
- Flexibly expandable with additional sensors
Included
- NB-IoT-P-7 wireless pipe pressure data logger
- Pressure sensor (0-7 bar, other ranges on request)
- Battery (3 x AA, 6300 mAh)
- User manual
- Free configuration app
Requirements for use
- NB-IoT SIM card and data plan (available separately)
- Optional: Efento Cloud for notifications, data storage and reporting
- Smartphone (Android/iOS) for configuration via Bluetooth
Optionally available
- Calibration certificate compliant with ISO 17025
- Efento Cloud licence (2 or 5 years)
- SMS credits for alarm notifications via SMS or phone call
With the NB-IoT-P-7 wireless pipe pressure data logger, you're assured of a reliable and fully autonomous solution for pressure monitoring, even in locations without WiFi.
