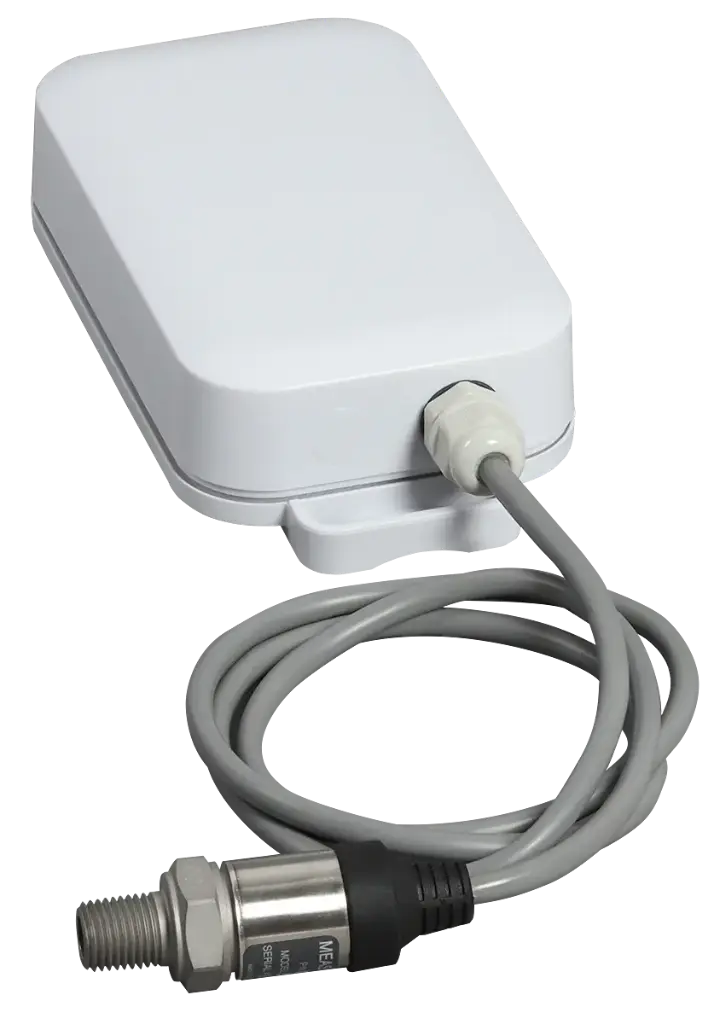

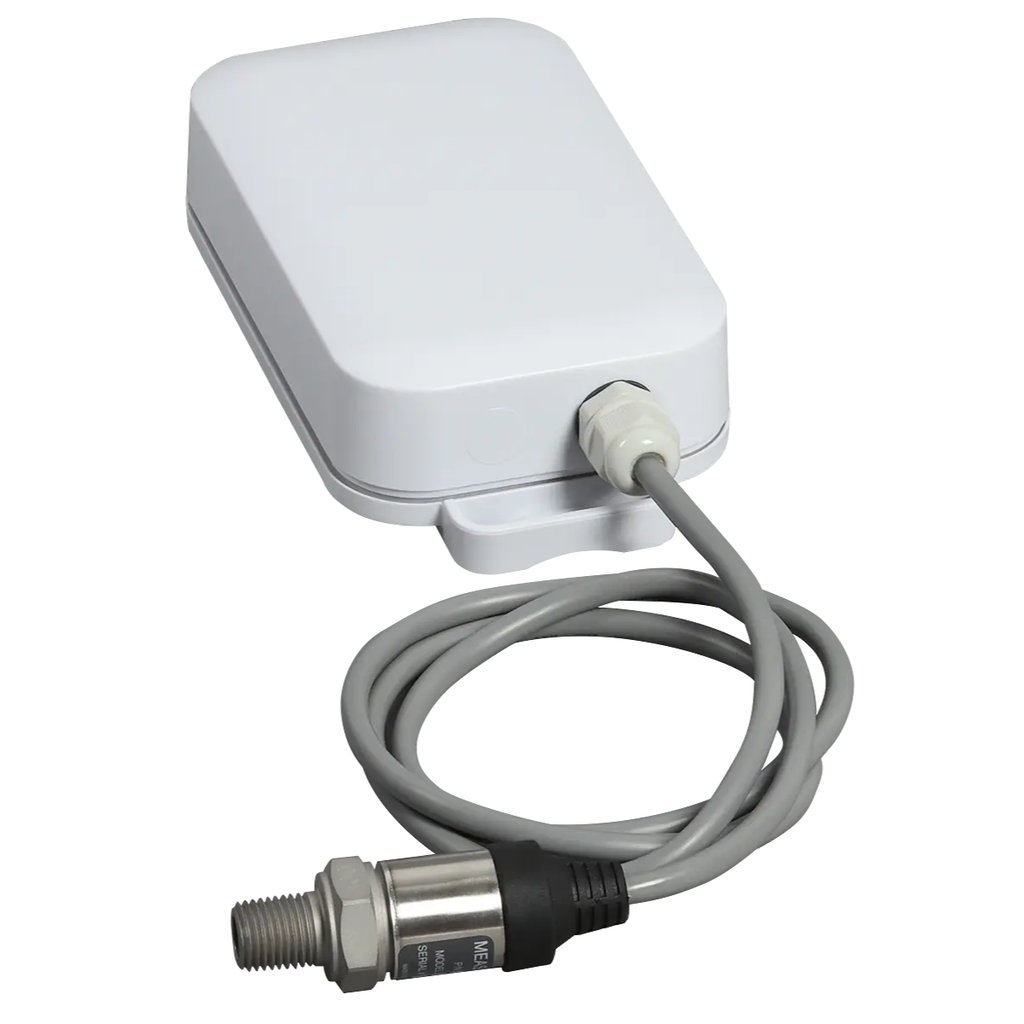

The Efento Bluetooth wireless pipe pressure data logger is designed for accurate monitoring of liquid and gas pressure in pipes and tanks. This sensor helps prevent leaks and ensures optimal operation of pipe systems. The logger is also widely used for tank level monitoring based on liquid pressure.
You can easily configure and read out the logger with the free Efento mobile app. For real-time monitoring, the logger can be linked to an Efento Gateway and Efento Cloud, allowing you to receive notifications and generate reports.
Key features
- Measuring range: 0-689 kPa (other ranges up to 2068 kPa on request)
- Maintenance-free battery operation for up to 5 years
- Adjustable measuring intervals: 1 minute to 10 days
- Memory for 40,000 measurements, with the oldest data automatically overwritten
- Adjustable alarm thresholds – warning when limits are exceeded
- Configuration via free mobile app (Bluetooth Low Energy)
- Optional: Linking with Efento Gateway and Efento Cloud for real-time monitoring
- Communication via Bluetooth Low Energy (BLE), range up to 100 metres in open space
- Compact and rugged design: 162 x 82 x 37 mm, weight 0.34 kg
Applications
- Monitoring pipe pressure in industrial installations and infrastructure
- Leak detection in water pipes and gas distribution systems
- Tank level control based on liquid pressure
- Monitoring HVAC systems, pumps and hydraulic installations
Why choose Efento Bluetooth?
- No extra infrastructure needed – easily read out and set up via smartphone
- Long battery life of up to 5 years – maintenance-free
- Free mobile app for configuration and data readout
- Flexibly expandable with Efento Gateway and Cloud for real-time monitoring
- Wide range of integration options via standard communication protocols
Included
- Efento Bluetooth wireless pipe pressure data logger
- Pressure sensor (0-689 kPa, other ranges on request)
- Battery (3 x AA, 6300 mAh)
- User manual
- Free Efento Configurator app
Requirements for use
- Smartphone (Android/iOS) for configuration and data readout via Bluetooth
- Optional: Efento Gateway and Efento Cloud for real-time monitoring and reporting
Optionally available
- Calibration certificate compliant with ISO 17025
- Efento Cloud licence (2 or 5 years)
- Efento Gateway for automatic data transfer
- USB 5V power option with 1000 mAh rechargeable battery
With the Efento Bluetooth wireless pipe pressure data logger, you have a reliable and user-friendly solution for pressure monitoring, with no need for extra infrastructure.
