Key features
- External thermocouple sensor (type K) included
- USB interface for easy configuration and data transfer
- Memory for 32,000 measurements
- Adjustable logging interval from 1 second to 12 hours
- Adjustable alarm limits
- LED status indication (red/green)
- Replaceable battery (life ± 3 years)
- Compatible with DataPad for on-site readout
- Free software available for configuration and readout
Product description

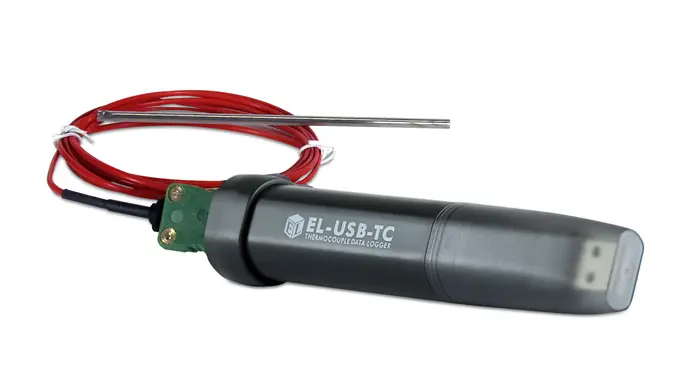

The EL-USB-TC is a compact and versatile USB data logger from Lascar, specially designed for accurate temperature measurements using an external thermocouple sensor. Ideal for industrial applications, storage monitoring, production environments, and quality control.
Each logger is supplied as standard with a K-type thermocouple (0 to 200°C), but also supports:
- K-type: -200 tot +1350°C
- J-type: -200 tot +1190°C
- T-type: -200 tot +390°C
The logger is easy to configure via a Windows computer and does not require a separate interface – you connect it directly via the USB port.
Included in the box
- EL-USB-TC datalogger
- K-type thermocouple sensor (1.5 m, with mini connector)
- Replaceable battery
- Mounting clip
- Free downloadable software (via Lascar)
Optional accessories
- Calibration certificate
- Spare battery
- Other sensor types (J, T, or custom), also available in various lengths
System requirements
- Windows PC with free USB port
- Downloadable software (available for free via Lascar)
Questions or interested in larger quantities?
Feel free to contact us by email or phone. We're happy to help.
