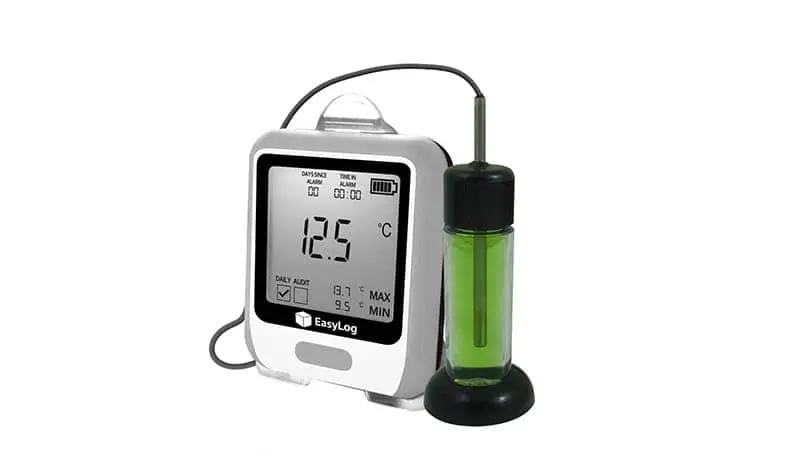

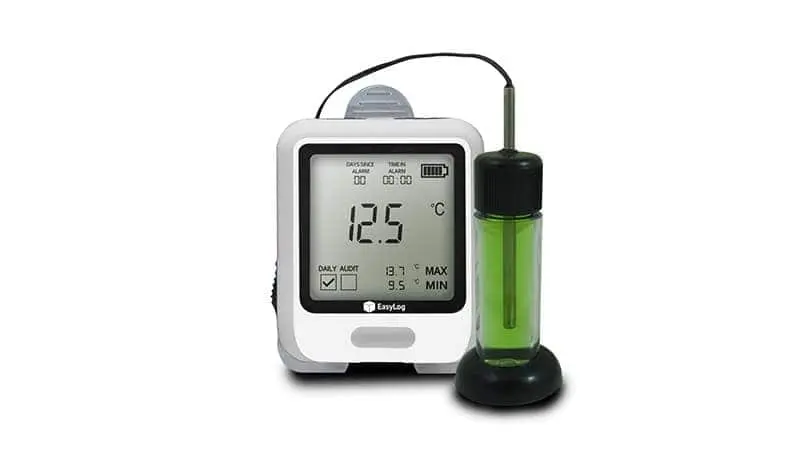

EL-USB-VACX - Vaccin Temperatuurlogger

The EasyLog EL-USB-VACX is an extremely accurate vaccine temperature logger specially designed for the safe monitoring of vaccines in refrigerators, freezers and during transport. Thanks to advanced measuring technology, this device prevents temperature deviations that could compromise the efficacy of vaccines.

By using a glycol-based vaccine simulation, false alarms are avoided and the actual thermal response of vaccines is accurately replicated.

Key benefits

• Specially developed for vaccines and temperature-sensitive medical products

• Glycol sensor realistically simulates vaccine behavior

• Very high accuracy (typically ±0.1 °C)

• More than 1,000,000 readings for complete traceability

• Hot-swappable probe for calibration without interruption

• Integrated audible alarm for temperature deviations

Applications

• Vaccine storage in refrigerators and freezers

• Vaccine transport and cold chain monitoring

• Hospitals and healthcare facilities

• Pharmacies

• Laboratories and research institutions

Smart features

• Adjustable logging intervals from 1 minute to 24 hours

• Smart start modes: immediate, push-button, delayed or temperature-triggered

• Onboard software for graphs, configuration and data insight

• Easy installation via PC or Mac

• Compatible with EasyLog Cloud for online data storage and reporting

Technical specifications

Temperature measurement

• Measuring range: -40 to +60 °C

• Resolution: 0.01 °C

• Typical accuracy: ±0.1 °C (-10 to +60 °C)

• Maximum accuracy: ±0.5 °C

Logging & memory

• Logging interval: 1 minute to 24 hours

• Memory: > 1,000,000 readings

• Alarm: integrated audible signal

Environmental conditions

• Operation & transport: -20 to +60 °C, 5–85% RH

Protection

• Logger: IP4X

• Probe: IP67

Power supply

• Interne Li-ion batterij: 3,7 V / 1750 mAh

• Battery life: up to 6 months

• USB power: 4.5 – 5.5 V DC

Dimensions & weight

• Dimensions: 80 × 68 × 23 mm

• Weight: 134 g

Why choose the EL-USB-VACX?

The EL-USB-VACX offers maximum assurance for vaccine safety thanks to extremely accurate measurements, reliable alarm systems and easy data processing. Ideal for organizations where compliance, patient safety and reliability are essential.
