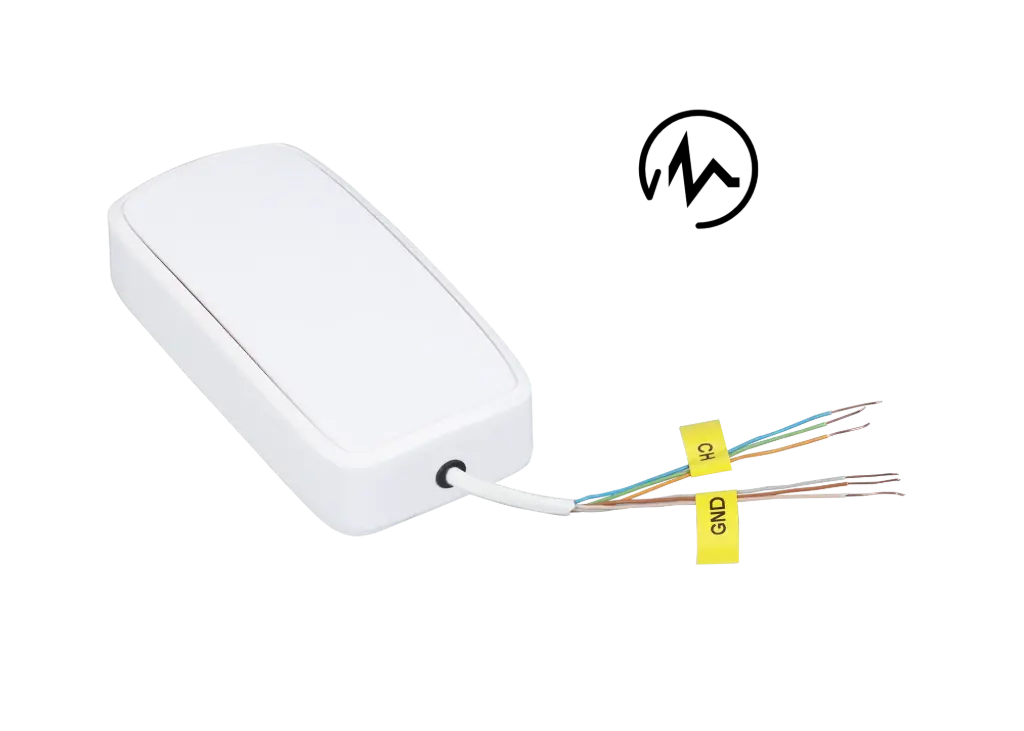

Efento NB-IoT Pulzzähler

Der Efento NB-IoT Wireless Pulse Counter erfasst Impulse von bis zu drei Geräten und überträgt diese automatisch über das NB-IoT-Netzwerk für eine Echtzeit- und wartungsfreie Überwachung.
146,41 € 146,41 € (inkl. Steuern)
121,00 € (inkl. Steuern)

121,00 € 121,00 € without taxes


  • Marke
  • Messparameter
  • Alimentation
  • Capteur(s)
  • Type d'utilisation
  • Mémoire
  • Intervalle de mesure
  • Type de connectivité
  • Type de produit
  • Fonctions d'alarme
  • Fonctions d'alarme
  • Affichage
  • Norme
In den Warenkorb
Allgemeine Geschäftsbedingungen
30-Tage-Geld-zurück-Garantie
Versand: 2-3 Geschäftstage
Kontaktieren Sie uns
Marke: Efento
Messparameter: Impulse
Alimentation: Batterij vervangbaar
Capteur(s): Extern
Type d'utilisation: Usage multiple
Mémoire: 40.000 mesures
Intervalle de mesure: 1 min – 10 jours, configurable
Type de connectivité: Carte SIM (NB-IoT / LTE-M)
Type de produit: Enregistreur de données
Fonctions d'alarme: SMS , E-mail
Affichage: Non (uniquement via logiciel/app/cloud)
Norme: EN12830
Dokumente
Handleiding NB-IoT Efento dataloggers.docx NBIoT Efento Sensor offline instructie.docx

Interne Referenz: 5293

The Efento NB-IoT Wireless Pulse Counter is designed for remotely monitoring and recording pulses, such as counting production output, opening/closing of doors, recording passage counts, or reading water, gas or heat meters. The sensor can work simultaneously with up to three devices with pulse output. Each pulse corresponds to one event, which is neatly stored and transmitted at set measurement intervals.

The pulse counter sends data via the NB-IoT mobile network, so no additional equipment such as routers or gateways is needed. Thanks to the built-in Bluetooth Low Energy interface, configuration is quick and easy via a smartphone. All Efento NB-IoT sensors can be integrated with Efento Cloud or any other IoT platform.

Key benefits

  • Up to 5 years of maintenance-free operation on batteries

  • NB-IoT transmission directly to Efento Cloud or another IoT platform

  • Measurement intervals adjustable from 1 minute to 10 days

  • Configurable alarm thresholds for instant notifications

  • Memory for 40,000 readings, with automatic overwriting of old data

  • Remote configuration via the cloud or via BLE with a smartphone

  • Suitable for operation with up to 3 pulse channels

Key features

Efento Cloud

Offers continuous monitoring, threshold alerts, automatic reports and extensive analysis.

Long battery life

Designed for years of use without replacing or charging batteries.

Lower installation costs

No cabling, no gateways, minimal installation and maintenance.

Broad sensor range

Expandable to various physical and chemical measurements as your sensor fleet grows.

Easy installation

Configured within 15 minutes with the free mobile app.

Technical specifications

Pulse counter

  • Suitable for any device with pulse output

  • Up to 3 simultaneous pulse channels

  • Minimum pulse time: 5 ms

  • Maximum pulse time: 500 ms

  • Supported counters: NO (Pull-up 3.6V)

NB-IoT

  • Standaard banden: B8, B20

  • Optioneel: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66

  • 3GPP Release: 13

  • Power: 23 dBm ±2 dB

Bluetooth Low Energy

  • Frequency: 2.4 GHz

  • Power: 2.5 mW (4 dBm)

  • Range: up to 100 m (LOS)

Communication

  • Protocol: CoAP

  • Transmission interval: 5 minutes – 10 days (adjustable)

Software-updates

  • Over-the-air (OTA, delta mechanisme)

  • Via Bluetooth Low Energy

Power supply

  • 3 × AA battery pack (6300 mAh, replaceable)

  • Battery life: up to 5 years

Dimensions & weight

  • 124 × 60 × 26 mm

  • 0.15 kg
